LHY Audio Ultimate Series XLR Cable (Balanced Audiophile Interconnect)
Price range: $395.00 through $509.00 inc GST (where applicable)
Exclusive to Diamond Audioworks the LHY Audio Ultimate series High-performance XLR interconnect cable using Gotham 10561 and Neutrik gold-plated connectors, delivering exceptional signal integrity for both analog and AES/EBU digital audio.
Product Description
LHY Audio Ultimate Series XLR Cable
Balanced Audiophile Interconnect for Analog and AES/EBU Digital Audio
The LHY Audio Ultimate Series XLR Cable is engineered to deliver exceptional signal integrity for high-performance HiFi and professional audio systems. Combining Gotham professional cable technology with Neutrik gold-plated connectors, this balanced interconnect provides low-noise transmission, excellent shielding, and highly accurate signal transfer.
Designed for both balanced analog audio and AES/EBU digital applications, the cable features true 110 Ohm impedance, low capacitance, and controlled attenuation characteristics to preserve clarity, dynamics, and tonal balance across the full frequency spectrum.

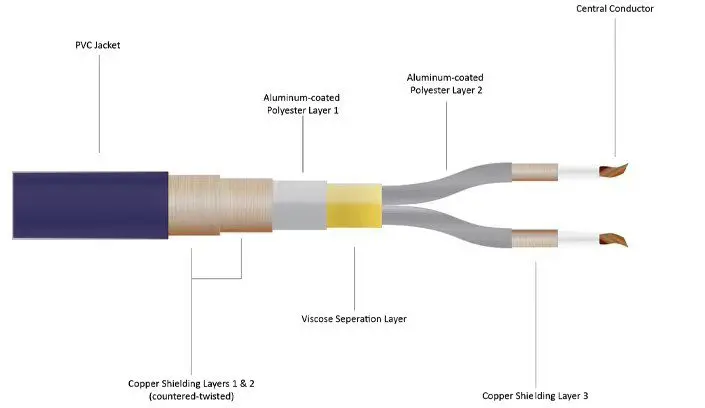

Professional Gotham Cable Architecture
At the core of the Ultimate Series XLR Cable is the renowned Gotham 10561 balanced audio cable, widely respected in professional recording and mastering environments for its excellent electrical consistency and noise rejection.
The cable design helps minimise:
- Electromagnetic interference (EMI)
- Radio frequency interference (RFI)
- Signal loss over longer cable runs
- Background noise and unwanted artifacts
This results in a cleaner and more stable signal path for both digital and analog audio systems.
Premium Neutrik XLR Connectors
The cable is terminated using genuine Neutrik professional XLR connectors with gold-plated contacts for long-term reliability and consistent conductivity.
These connectors are trusted worldwide in both studio and audiophile applications due to their:
- Low contact resistance
- Secure mechanical locking
- Excellent durability
- Reliable long-term signal integrity
Optimised for Analog and AES/EBU Digital Audio
Unlike many generic XLR cables, the LHY Ultimate Series is engineered with true 110 Ohm impedance, making it suitable for AES/EBU digital audio transmission as well as balanced analog applications.
Its low capacitance and controlled impedance design help maintain:
- Signal timing accuracy
- Dynamic range preservation
- Transparent tonal balance
- Stable digital synchronization
Key Features
- Gotham 10561 professional balanced audio cable
- Neutrik gold-plated XLR connectors
- True 110 Ohm impedance design
- Suitable for analog and AES/EBU digital audio
- Low capacitance for improved transparency
- Excellent shielding and noise rejection
- Low attenuation for accurate signal transmission
- High insulation resistance for long-term stability
Technical Specifications
| Specification | Details |
|---|---|
| Cable Type | Balanced XLR Interconnect |
| Core Cable | Gotham 10561 |
| Connectors | Neutrik Gold-Plated XLR |
| Impedance | True 110 Ohm |
| Applications | Balanced Analog / AES-EBU Digital |
| Shielding | High-Rejection Professional Shielding |
| Performance | Low Capacitance / Low Attenuation |
| Recommended Use | DACs, Streamers, Preamps, Professional Audio Systems |
Ideal For
- High-end balanced HiFi systems
- AES/EBU digital audio connections
- DAC to preamplifier connections
- Professional recording systems
- Low-noise audiophile installations
- Reference-level digital front ends
Built for Transparent Signal Transfer
The LHY Audio Ultimate Series XLR Cable combines professional studio-grade engineering with audiophile-focused performance, delivering a clean, balanced, and highly transparent connection between your audio components.
Impedance: 110 Ohm
Attenuation: < 2 dB / 100 m @ 1 MHz
Capacitance:
< 44 nF/km (conductor to conductor @ 800 Hz)
< 105 nF/km (conductor to shield)
Conductor Resistance: < 57.5 Ohm/km
Insulation Resistance: > 10 MΩ·km
Test Voltage:
500 Veff (conductor to conductor)
2000 Veff (conductor to shield)
Additional Information
| Length | 1m, 1.5m, 2m |
|---|
